Description
Short Specifications
Preliminary

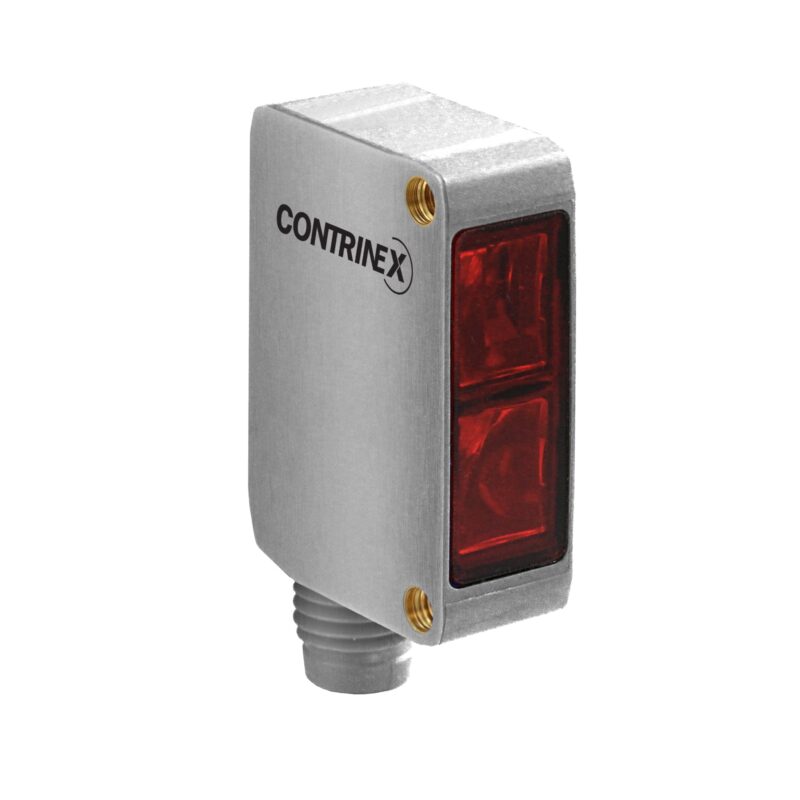

IDDR-C23MP-NMS-A0
| Operating range | 25…150 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10…30 |
| Polarity | PNP |
| Output | Light-on/IO-Link + Stability alarm |
| Sensitivity adjustment | IO-Link only |
| Connection | M8 4-pin |
| Housing size [mm] | 20 x 30 (C23) |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 15…150 mm |
| Temperature range | -25…+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Digital measurement |
| Sensing range max. | 15…150 mm |
