Description
Short Specifications

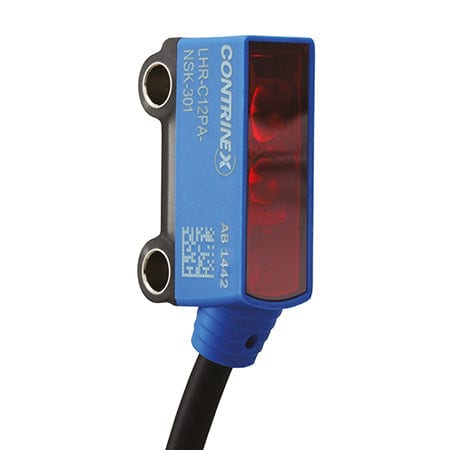

LHR-C12PA-NSK-301
| Operating range | 1…15 mm |
| Switching frequency max. | 800 Hz |
| Supply voltage | 10…30 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | No |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | 13 x 21 (C12) |
| Enclosure rating | IP 67 |
| Housing material | ABS |
| Temperature range | -20…+50°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | Standard output |
| Operating principle | Background suppression |
| Sensing range max. | 1…18 mm |
