Description
Short Specifications

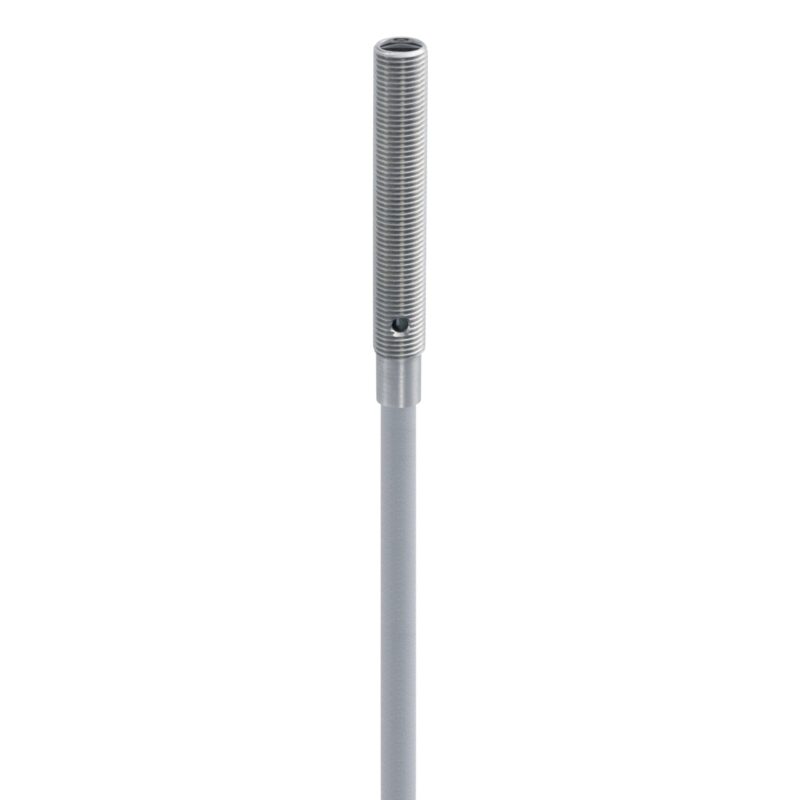

LTR-M05MA-NLK-301
| Operating range | 0…50 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10…30 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | No |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M5 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25…+65°C |
| Light source | LED, red 680 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 0…60 mm |
